The C50 is a compact, fully servo motor driven, inline stretch-banding machine suitable for automatic banding or shrink-wrapping of carton bundles.

It features balcony-style design and separation between electrical and mechanical sections.

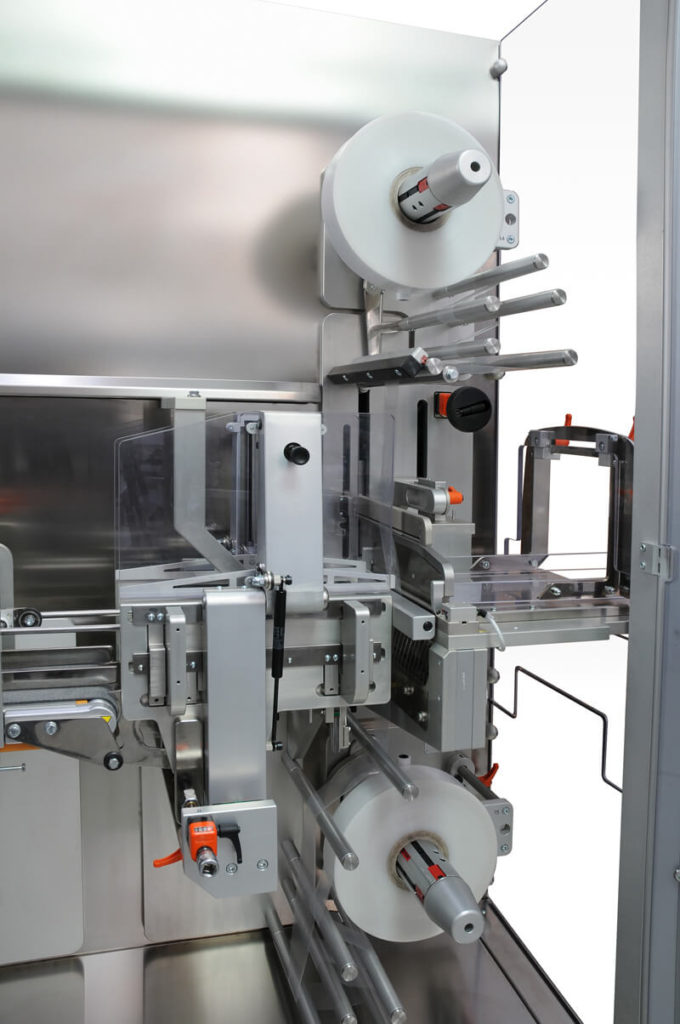

Among the main features are positively driven upper and lower film roll unwinding, fast-cooling sealing capability, self-cleaning hot sealing bar and adjustable stretch tensioning.

The machine can be equipped with:

  • Casters for portability;
  • Carton rotation unit (90° or 180°) at in-feed;
  • Heating tunnel for shrink-wrapped presentation;
  • Servo motor driven stacking unit;
  • Remote connectivity.

C50 details

Technical Data

Mechanical output40 cycles/min
Power supply230/400V — 50Hz
Installed power4 kW
Max. air consumption200 Nl/min
Time to change size15 min
Approx. weight1,100 kg
