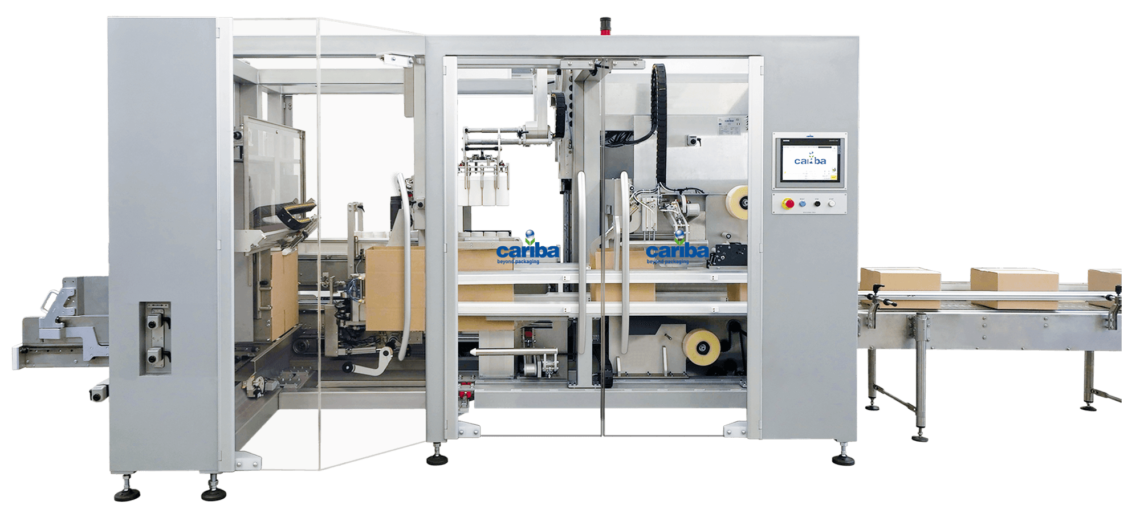

The top-load case packer C730 is suitable for packaging of bottles, cartons, bundles, sachets, bags and flow-packs inside corrugated shipper (RSC).

Controlled by servo motors, it features balcony construction with full accessibility inside the main frame for easy cleaning, maintenance and convenient operator interventions.

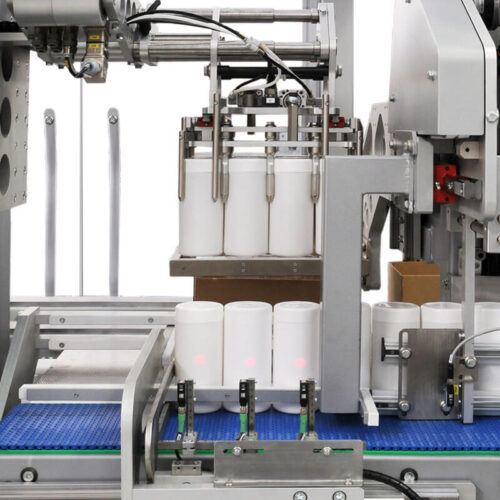

Different infeed units are available to arrange the products before being vertically loaded by a robotic arm inside the shipper.
Each RSC case is picked from the magazine with a double arm system with suction cups that ensures positive case opening. After product loading, cases are sealed by hot melt or PVC adhesive tape.
The C730 case packer can be connected to any upstream CARIBA machine.

The machine can be customized with:

Product orientation unit at in-feed with verification;

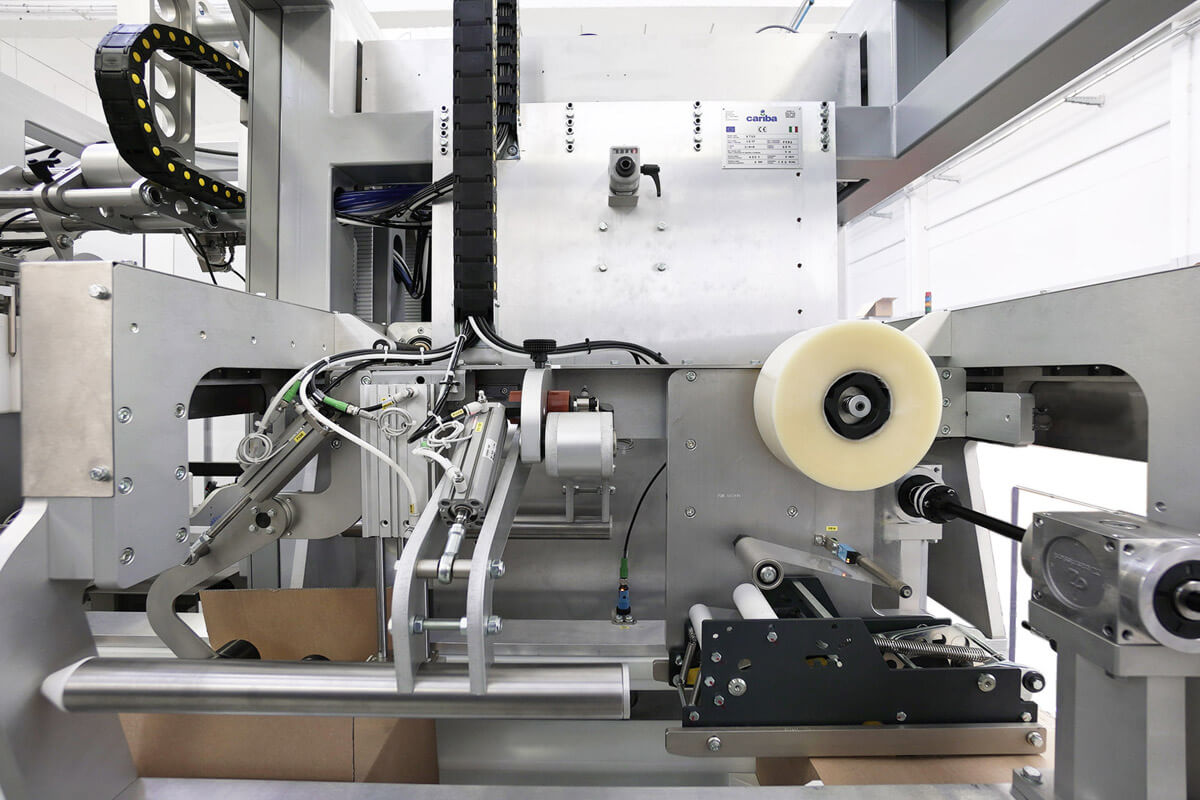

• Shipper flaps closure with hot-melt or PVC adhesive tape;
• Out-feed station with print & apply labeler and reject;
• Aggregation-ready with product verification before introduction inside the shipper;
• Remote connectivity.

C730 details

Technical Data

Mechanical output15 cases/min
Power supply230/400V — 50Hz
Installed power Hot-melt closure12 kW
Installed power PVC tape closure8 kW
Max. air consumption300 Nl/min
Time to change size15 min
Approx. weight2.700 kg
